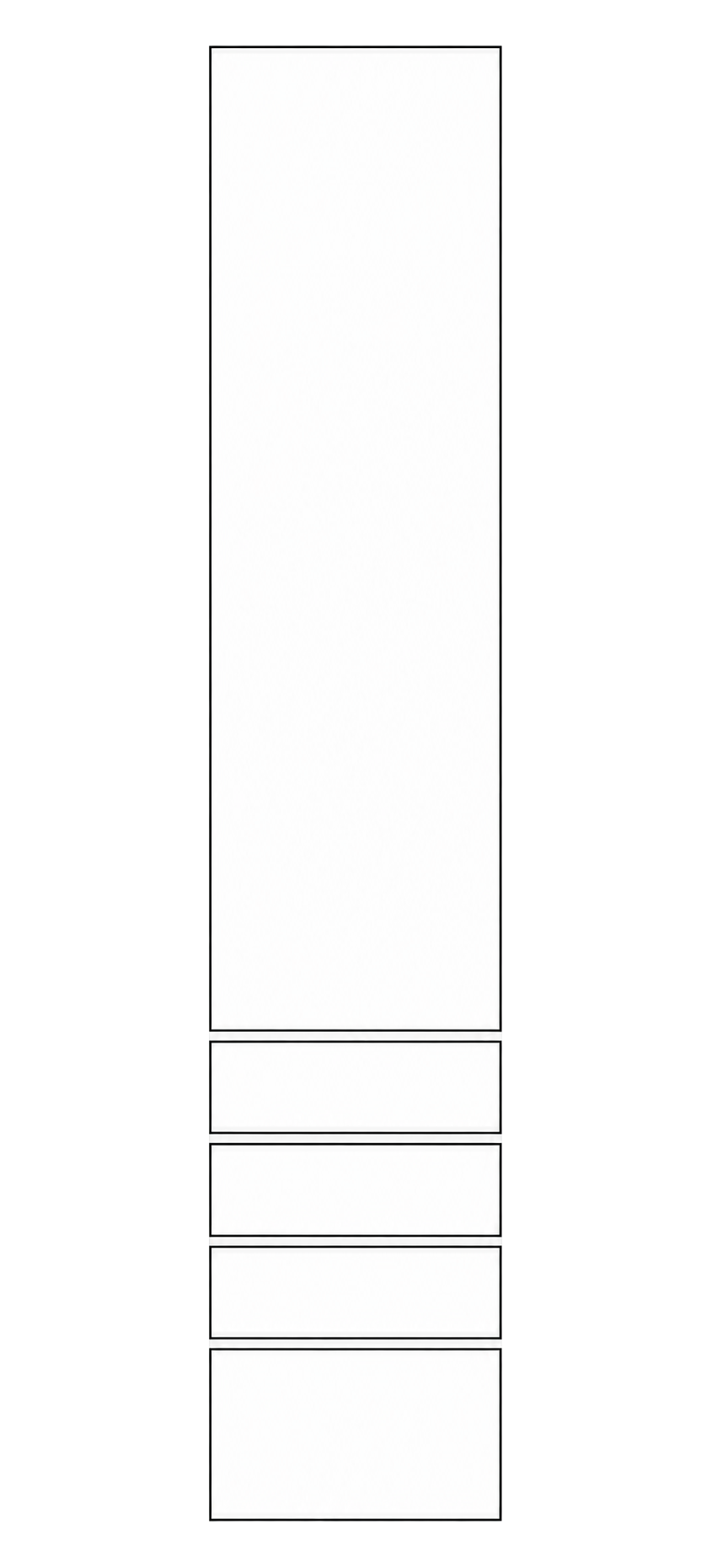

50x200 - 1 Door + 4 Drawer Fronts - Left Hung - Laminex - PAX
← Back to IKEA PAX

50x200 - 1 Door + 4 Drawer Fronts - Left Hung - Laminex - PAX

1. Profile
2. Finish
3. Colour
From $275.00 AUD
Tax included. Shipping calculated at checkout.

Plain Laminex Natural Finish

Specifications

Set includes1 x Door + 4 x Drawer Fronts
FitsIKEA PAX frame 50cm wide x 201cm high (left-hung)
Thickness18mm
ProfilePlain
FinishLaminex Natural Finish, Laminex AbsoluteMatte Finish, Laminex AbsoluteGrain Finish

Product details

  • Customea Exclusive. Turn a standard IKEA PAX frame into a built-in style wardrobe with a full-height door above and four drawers below, a layout IKEA doesn't offer.

    • Laminex Natural Finish

    • The Laminex Natural Finish PAX Doors, Drawers & Panels are made from a hardwearing Laminex laminate with a smooth, classic surface that works in both modern and traditional kitchens. One side is in the Laminex colour of your choosing, the other side is either black or white in a standard finish.

    Laminex AbsoluteMatte Finish

    • The AbsoluteMatte Laminate PAX Doors, Drawers & Panels are made from a hardwearing laminate, featuring InvisiTouch®, a world-leading surface technology that delivers fingerprint resistance & durability properties in an ultra-matte feel. One Side is in the Absolute Matte finish of your choosing, the other side is either black or white in a standard finish.

    Laminex AbsoluteGrain Finish

    • The AbsoluteGrain Laminate PAX Doors, Drawers & Panels combine an ultra-matte, fingerprint-resistant surface with a realistic embossed timber grain texture, the look of natural wood with the durability of a hardwearing laminate. One side is in the AbsoluteGrain decor of your choosing, the other side is either black or white in a standard finish.
    • Doors, Drawers and Panels are finished with matching edgebanding. Plinths are not edged.
  • Door comes with hinge holes pre-drilled. Drawer fronts fix onto the IKEA KOMPLEMENT drawer fronts.
  • Not included, buy from IKEA: 1 x PAX frame 50cm wide x 201cm high, 4 x KOMPLEMENT drawers with front (50cm), PAX door hinges.
  • You will also need 20mm screws (6 per drawer front) and 2 clamps to fit the drawer fronts (not included). Handles not included.

    • Installation:

  • 1. Assemble the PAX frame and fit the 4 KOMPLEMENT drawers with their IKEA fronts.
  • 2. Hang the door first using the IKEA hinges and adjust it so it sits level.
  • 3. Work from top to bottom. Clamp the top drawer front to the IKEA drawer leaving a 3mm gap below the door, pre-drill the IKEA front from inside, then fix it through the IKEA front with 20mm screws (6 per front: corners plus centre top and bottom). On routed profiles keep the screws on the flat border and do not over-tighten.
  • 4. Clamp the second drawer front leaving a 3mm gap to the drawer front above, pre-drill and screw, then repeat for the remaining two. The deepest drawer front goes at the bottom.
  • 5. Check all gaps are even and adjust the door if needed.
  • Download the step-by-step installation guide (PDF)
