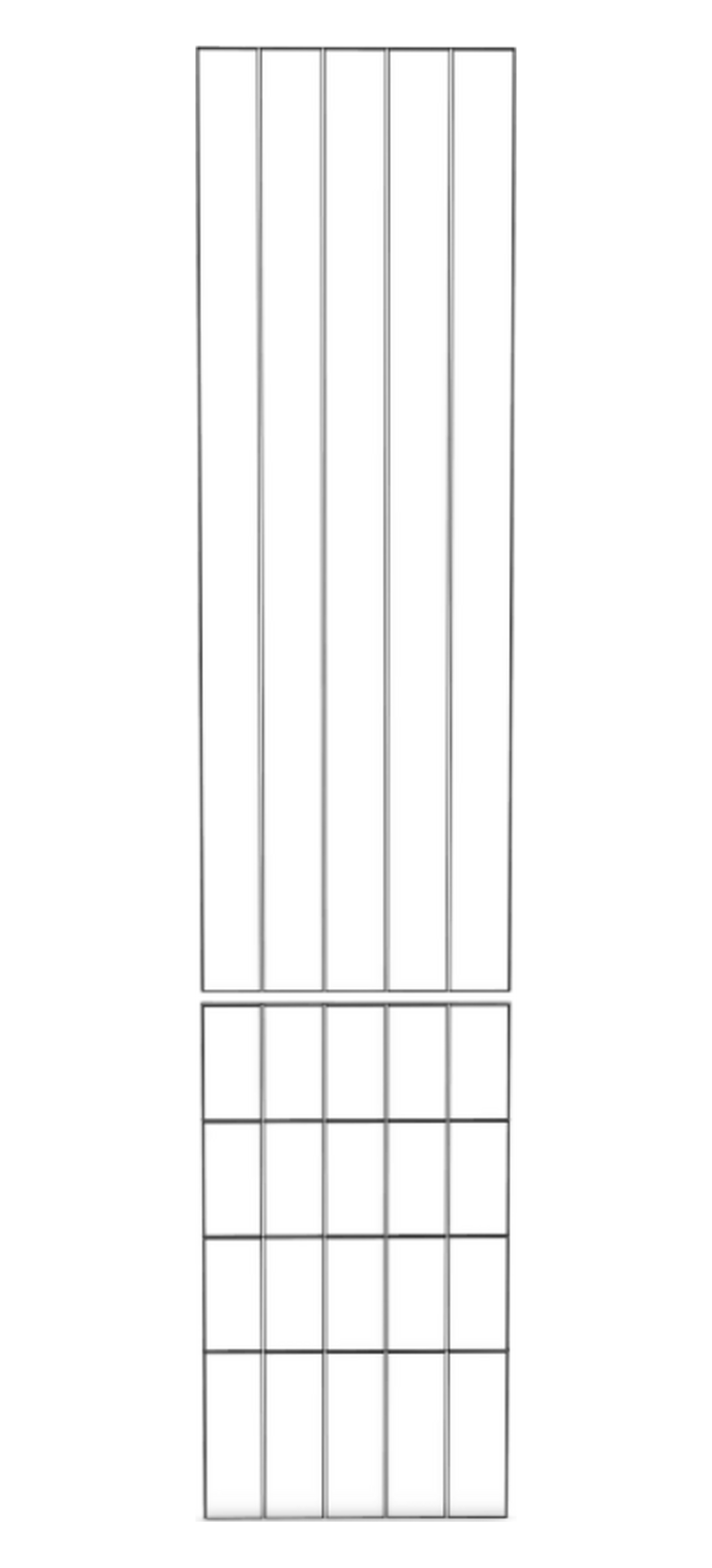

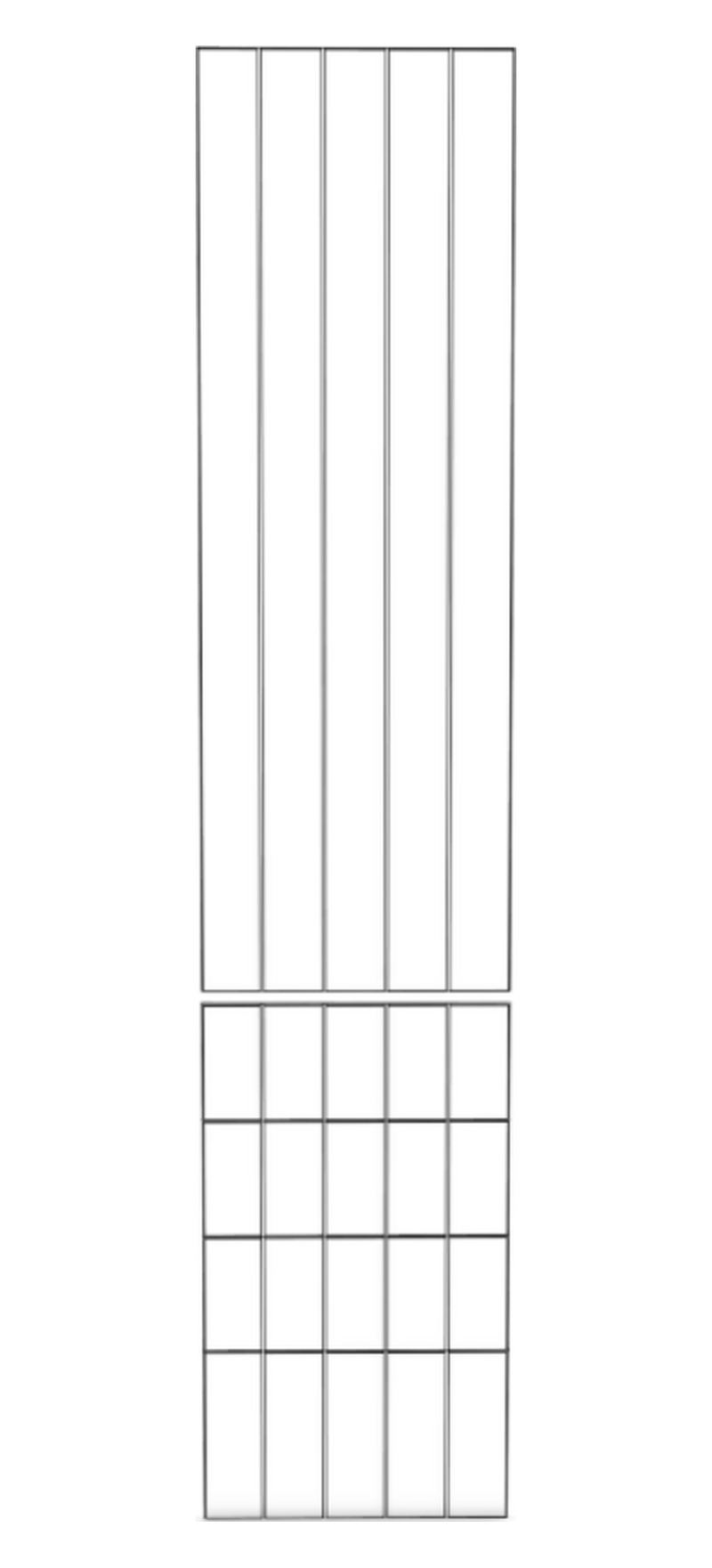

50x236 - 1 Door + 4 Drawer Fronts - Left Hung - Coastal - Painted (2Pac Poly) - PAX - (To Fit 50cm PAX Frame)
50x236 - 1 Door + 4 Drawer Fronts - Left Hung - Coastal - Painted (2Pac Poly) - PAX - (To Fit 50cm PAX Frame)
50x236 - 1 Door + 4 Drawer Fronts - Left Hung - Coastal - Painted (2Pac Poly) - PAX - (To Fit 50cm PAX Frame)

50x236 - 1 Door + 4 Drawer Fronts - Left Hung - Coastal - Painted (2Pac Poly) - PAX - (To Fit 50cm PAX Frame)

$750.00 AUD
$750.00 AUD
Tax included. Shipping calculated at checkout.

Specifications:

Set includes: 1 x Door + 4 x Drawer Fronts

Fits: IKEA PAX frame 50cm wide x 236cm high (left-hung)

Thickness: 18mm

Profile: Coastal

Finish: Painted (2Pac Poly)

Description:

  • Customea Exclusive. Turn a standard IKEA PAX frame into a built-in style wardrobe with a full-height door above and four drawers below — a layout IKEA doesn't offer.
  • The painted PAX Doors are made from Moisture Resistant (MR) MDF and are sprayed several times for a smooth finish using 2Pac Polyurethane paint.
  • Doors and Panels are painted on the front and all edges, the backs are unpainted white melamine.
  • Our Standard Paint finish is Matt (10%). If you prefer a different finish (Satin, Semi-Gloss, Gloss), you can leave a note at check out.
  • Available in any of our Standard Colours or the Custom Colour of your choice. Add your Colour Code as required.
  • Door comes with hinge holes pre-drilled. Drawer fronts fix onto the IKEA KOMPLEMENT drawer fronts.
  • Not included — buy from IKEA: 1 x PAX frame 50cm wide x 236cm high, 4 x KOMPLEMENT drawers with front (50cm), PAX door hinges.
  • You will also need 20mm screws (6 per drawer front) and 2 clamps to fit the drawer fronts (not included). Handles not included.

    • Installation:

  • 1. Assemble the PAX frame and fit the 4 KOMPLEMENT drawers with their IKEA fronts.
  • 2. Hang the door first using the IKEA hinges and adjust it so it sits level.
  • 3. Work from top to bottom. Clamp the top drawer front to the IKEA drawer leaving a 3mm gap below the door, pre-drill the IKEA front from inside, then fix it through the IKEA front with 20mm screws (6 per front: corners plus centre top and bottom). On routed profiles keep the screws on the flat border and do not over-tighten.
  • 4. Clamp the second drawer front leaving a 3mm gap to the drawer front above, pre-drill and screw, then repeat for the remaining two. The deepest drawer front goes at the bottom.
  • 5. Check all gaps are even and adjust the door if needed.
  • Download the step-by-step installation guide (PDF)
    •
