50x236 - 1 Door + 4 Drawer Fronts - Left Hung - Slim Shaker - Unpainted (Raw) - PAX - (To Fit 50cm PAX Frame)
-
Regular price
-
$340.00 AUD
-
Sale price
-
$340.00 AUD
-
Regular price
-
- Unit price
-
/
per
Tax included.
Shipping calculated at checkout.
Specifications:

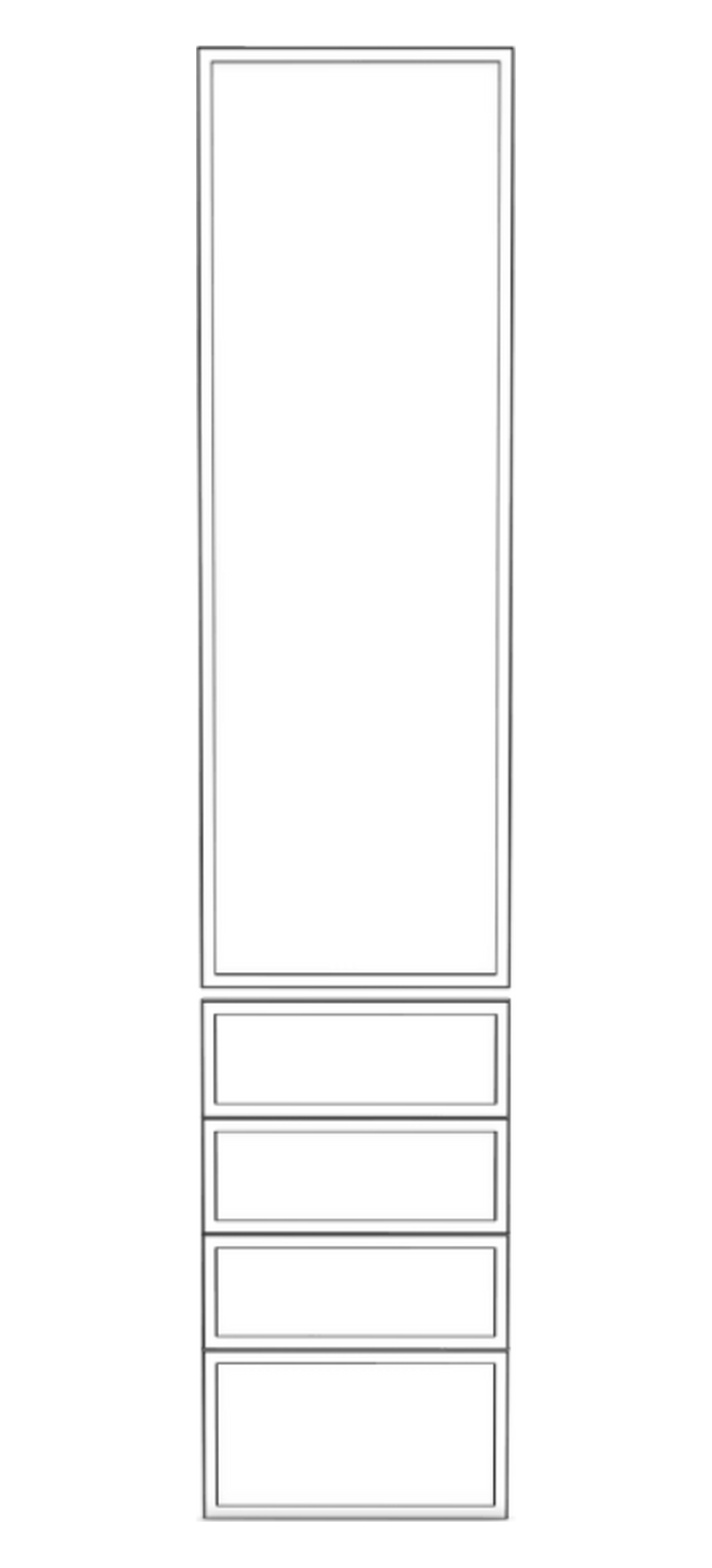

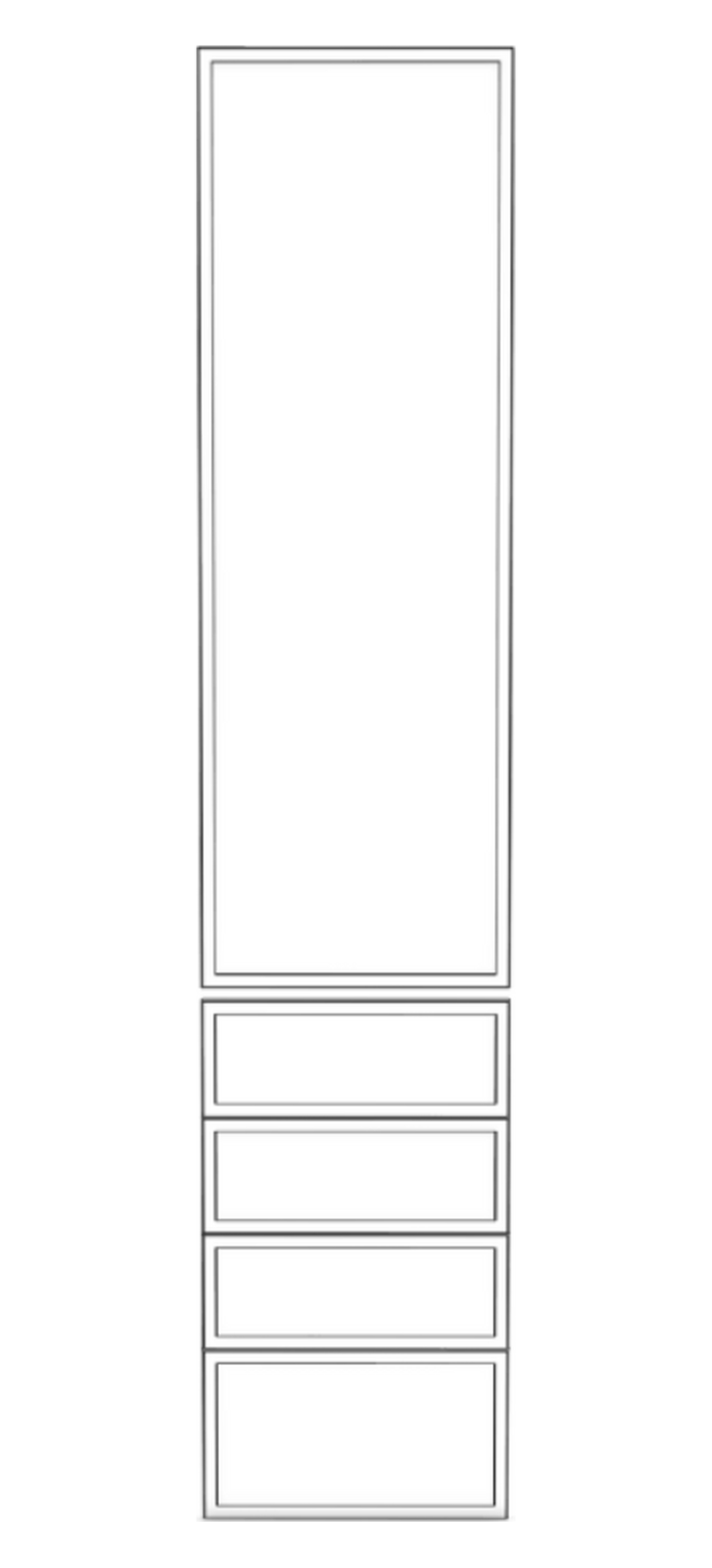

Set includes: 1 x Door + 4 x Drawer Fronts
Fits: IKEA PAX frame 50cm wide x 236cm high (left-hung)
Thickness: 18mm
Profile: Slim Shaker
Finish: Unpainted (Raw)
Description:
Customea Exclusive. Turn a standard IKEA PAX frame into a built-in style wardrobe with a full-height door above and four drawers below — a layout IKEA doesn't offer.
The Unpainted (Raw) PAX Doors are made from Moisture Resistant (MR) MDF.
Doors and Panels are white melamine on the front & back with raw edges and raw routed profiles.
Door comes with hinge holes pre-drilled. Drawer fronts fix onto the IKEA KOMPLEMENT drawer fronts.
Not included — buy from IKEA: 1 x PAX frame 50cm wide x 236cm high, 4 x KOMPLEMENT drawers with front (50cm), PAX door hinges.
You will also need 20mm screws (6 per drawer front) and 2 clamps to fit the drawer fronts (not included). Handles not included.
Installation:
1. Assemble the PAX frame and fit the 4 KOMPLEMENT drawers with their IKEA fronts.
2. Hang the door first using the IKEA hinges and adjust it so it sits level.
3. Work from top to bottom. Clamp the top drawer front to the IKEA drawer leaving a 3mm gap below the door, pre-drill the IKEA front from inside, then fix it through the IKEA front with 20mm screws (6 per front: corners plus centre top and bottom). On routed profiles keep the screws on the flat border and do not over-tighten.
4. Clamp the second drawer front leaving a 3mm gap to the drawer front above, pre-drill and screw, then repeat for the remaining two. The deepest drawer front goes at the bottom.
5. Check all gaps are even and adjust the door if needed.
Download the step-by-step installation guide (PDF)
