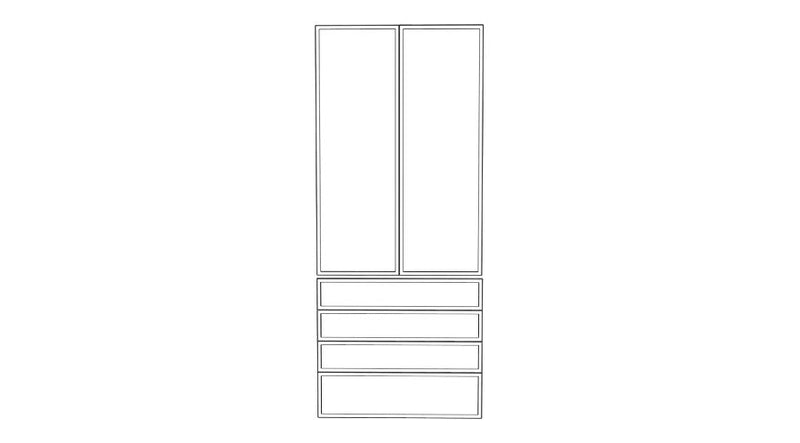

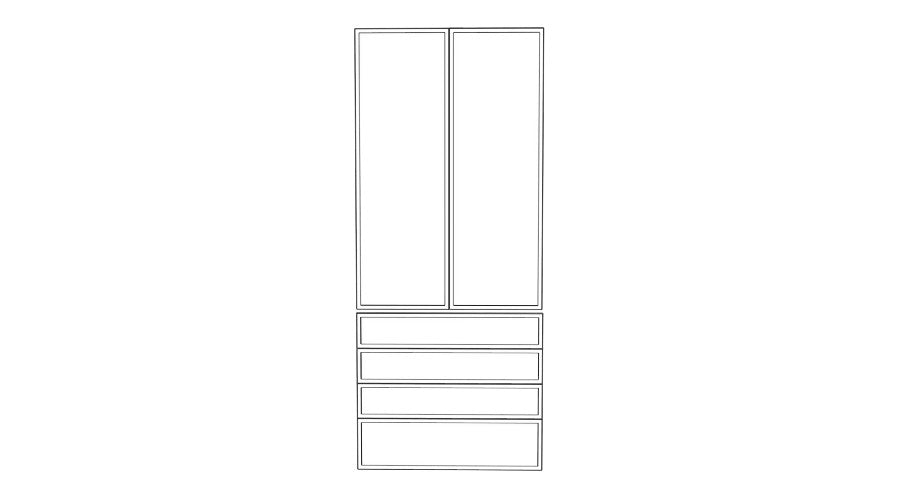

75x200 - 2 Doors + 4 Drawer Fronts - Slim Shaker - Unpainted (Raw) - PAX - (To Fit 75cm PAX Frame)
75x200 - 2 Doors + 4 Drawer Fronts - Slim Shaker - Unpainted (Raw) - PAX - (To Fit 75cm PAX Frame)
75x200 - 2 Doors + 4 Drawer Fronts - Slim Shaker - Unpainted (Raw) - PAX - (To Fit 75cm PAX Frame)

75x200 - 2 Doors + 4 Drawer Fronts - Slim Shaker - Unpainted (Raw) - PAX - (To Fit 75cm PAX Frame)

$430.00 AUD
$430.00 AUD
Tax included. Shipping calculated at checkout.

Slim Shaker Unpainted (Raw)

Specifications

Set includes2 x Doors + 4 x Drawer Fronts
FitsIKEA PAX frame 75cm wide x 201cm high
Thickness18mm
ProfileSlim Shaker
FinishUnpainted (Raw)

Product details

  • Customea Exclusive. Turn a standard IKEA PAX frame into a built-in style wardrobe with two full doors above and four drawers below, a layout IKEA doesn't offer.
  • The Unpainted (Raw) PAX Doors are made from Moisture Resistant (MR) MDF.
  • Doors and Panels are white melamine on the front & back with raw edges and raw routed profiles.
  • Doors come with hinge holes pre-drilled. Drawer fronts fix onto the IKEA KOMPLEMENT drawer fronts.
  • Not included, buy from IKEA: 1 x PAX frame 75cm wide x 201cm high, 4 x KOMPLEMENT drawers with front (75cm), PAX door hinges.
  • You will also need 20mm screws (6 per drawer front) and 2 clamps to fit the drawer fronts (not included). Handles not included.

    • Installation:

  • 1. Assemble the PAX frame and fit the 4 KOMPLEMENT drawers with their IKEA fronts.
  • 2. Hang the two doors first using the IKEA hinges and adjust them so they sit level.
  • 3. Work from top to bottom. Clamp the top drawer front to the IKEA drawer leaving a 3mm gap below the doors, pre-drill the IKEA front from inside, then fix it through the IKEA front with 20mm screws (6 per front: corners plus centre top and bottom). On routed profiles keep the screws on the flat border and do not over-tighten.
  • 4. Clamp the second drawer front leaving a 3mm gap to the drawer front above, pre-drill and screw, then repeat for the remaining two. The deepest drawer front goes at the bottom.
  • 5. Check all gaps are even and adjust the doors if needed.
  • Download the step-by-step installation guide (PDF)
