75x236 - 2 Doors + 4 Drawer Fronts - Laminex - PAX

1. Profile
2. Finish
3. Colour
From $510.00 AUD
Tax included. Shipping calculated at checkout.

Specifications:

Set includes: 2 x Doors + 4 x Drawer Fronts

Fits: IKEA PAX frame 75cm wide x 236cm high

Thickness: 18mm

Description:

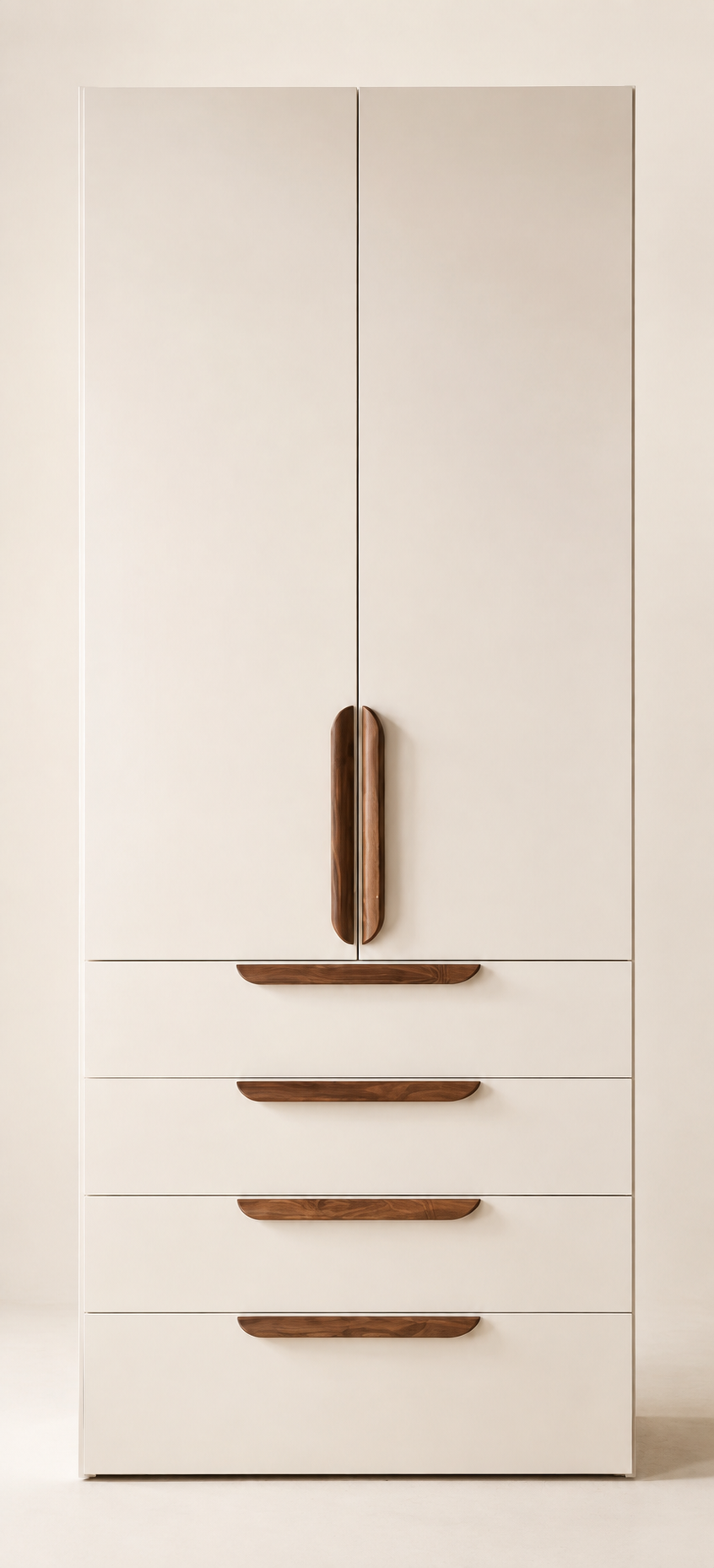

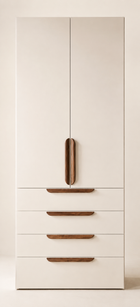

  • Customea Exclusive. Turn a standard IKEA PAX frame into a built-in style wardrobe with two full doors above and four drawers below — a layout IKEA doesn't offer.

    • Laminex Natural Finish

    • The Laminex Natural Finish PAX Doors, Drawers & Panels are made from a hardwearing Laminex laminate with a smooth, classic surface that works in both modern and traditional kitchens. One side is in the Laminex colour of your choosing, the other side is either black or white in a standard finish.

    Laminex AbsoluteMatte Finish

    • The AbsoluteMatte Laminate PAX Doors, Drawers & Panels are made from a hardwearing laminate, featuring InvisiTouch®, a world-leading surface technology that delivers fingerprint resistance & durability properties in an ultra-matte feel. One Side is in the Absolute Matte finish of your choosing, the other side is either black or white in a standard finish.

    Laminex AbsoluteGrain Finish

    • The AbsoluteGrain Laminate PAX Doors, Drawers & Panels combine an ultra-matte, fingerprint-resistant surface with a realistic embossed timber grain texture — the look of natural wood with the durability of a hardwearing laminate. One side is in the AbsoluteGrain decor of your choosing, the other side is either black or white in a standard finish.
    • Doors, Drawers and Panels are finished with matching edgebanding. Plinths are not edged.
  • Doors come with hinge holes pre-drilled. Drawer fronts fix onto the IKEA KOMPLEMENT drawer fronts.
  • Not included — buy from IKEA: 1 x PAX frame 75cm wide x 236cm high, 4 x KOMPLEMENT drawers with front (75cm), PAX door hinges.
  • You will also need 20mm screws (6 per drawer front) and 2 clamps to fit the drawer fronts (not included). Handles not included.

    • Installation:

  • 1. Assemble the PAX frame and fit the 4 KOMPLEMENT drawers with their IKEA fronts.
  • 2. Hang the two doors first using the IKEA hinges and adjust them so they sit level.
  • 3. Work from top to bottom. Clamp the top drawer front to the IKEA drawer leaving a 3mm gap below the doors, pre-drill the IKEA front from inside, then fix it through the IKEA front with 20mm screws (6 per front: corners plus centre top and bottom). On routed profiles keep the screws on the flat border and do not over-tighten.
  • 4. Clamp the second drawer front leaving a 3mm gap to the drawer front above, pre-drill and screw, then repeat for the remaining two. The deepest drawer front goes at the bottom.
  • 5. Check all gaps are even and adjust the doors if needed.
  • Download the step-by-step installation guide (PDF)
